BD HorizonTM BB700 Rat Anti-Mouse CD45

Description

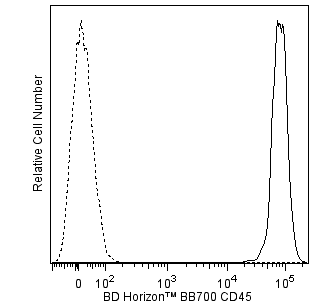

Flow cytometric analysis of CD45 expression on mouse splenocytes. Mouse splenic leucocytes were preincubated with Purified Rat Anti-Mouse CD16/CD32 antibody Mouse BD Fc Block Cat. No. 553141/553142 . The cells were stained with either BD Horizon BB700 Rat IgG2b, kappa Isotype Control Cat. No. 566418; dashed line histogram or BD Horizon BB700 Rat Anti-Mouse CD45 antibody Cat. No. 566439/566440; solid line histogram at 0.5 mug/ml. Cells were then stained with BD Via-Probe Red Nucleic Acid Stain Cat. No. 565803/565804 and analyzed. The fluorescence histogram showing CD45 fluorescence or Ig Isotype control staining was derived from gated events with the forward and side light-scatter characteristics of viable splenic leucocytes that were Via Probe Red-negative. Flow cytometric analysis was performed using a BD LSRFortessa Cell Analyzer System X-20. Data shown on this Technical Data Sheet are not lot specific. Flow cytometric analysis of CD45 expression on mouse splenocytes. Mouse splenic leucocytes were preincubated with Purified Rat Anti-Mouse CD16/CD32 antibody Mouse BD Fc Block Cat. No. 553141/553142 . The cells were stained with either BD Horizon BB700 Rat IgG2b, kappa Isotype Control Cat. No. 566418; dashed line histogram or BD Horizon BB700 Rat Anti-Mouse CD45 antibody Cat. No. 566439/566440; solid line histogram at 0.5 mug/ml. Cells were then stained with BD Via-Probe Red Nucleic Acid Stain Cat. No. 565803/565804 and analyzed. The fluorescence histogram showing CD45 fluorescence or Ig Isotype control staining was derived from gated events with the forward and side light-scatter characteristics of viable splenic leucocytes that were Via Probe Red-negative. Flow cytometric analysis was performed using a BD LSRFortessa Cell Analyzer System X-20. Data shown on this Technical Data Sheet are not lot specific. Show More Flow cytometric analysis of CD45 expression on mouse splenocytes. Mouse splenic leucocytes were preincubated with Purified Rat Anti-Mouse CD16/CD32 antibody Mouse BD Fc Block Cat. No. 553141/553142 . The cells were stained with either BD Horizon BB700 Rat IgG2b, kappa Isotype Control Cat. No. 566418; dashed line histogram or BD Horizon BB700 Rat Anti-Mouse CD45 antibody Cat. No. 566439/566440; solid line histogram at 0.5 mug/ml. Cells were then stained with BD Via-Probe Red Nucleic Acid Stain Cat. No. 565803/565804 and analyzed. The fluorescence histogram showing CD45 fluorescence or Ig Isotype control staining was derived from gated events with the forward and side light-scatter characteristics of viable splenic leucocytes that were Via Probe Red-negative. Flow cytometric analysis was performed using a BD LSRFortessa Cell Analyzer System X-20. Data shown on this Technical Data Sheet are not lot specific.
