BD HorizonTM BUV737 Mouse Anti-Human CD137

Description

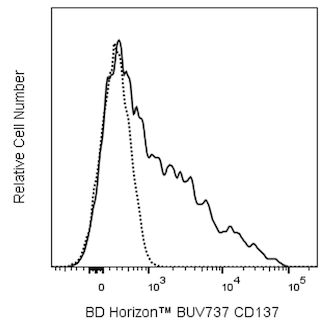

Flow cytometric analysis of CD137 expression on stimulated human peripheral blood lymphocytes. Concanavalin A Con-A -stimulated 3 days peripheral blood mononuclear cells were stained with either BD Horizon BUV737 Mouse IgG1, kappa Isotype Control Cat. No. 612758; dashed line histogram or BD Horizon BUV737 Mouse Anti-Human CD137 antibody Cat. No. 568348; solid line histogram at 0. 5 mug/test . BD Via-Probe Cell Viability 7-AAD Solution Cat. No. 555815/555816 was added to cells right before analysis. The fluorescence histogram showing the expressed levels of CD137 or Ig Isotype control staining was derived from gated events with the forward and side light-scatter characteristics of viable 7-AAD-negative activated lymphocytes. Flow cytometry and data analysis were performed using a BD LSRFortessa Cell Analyzer System and FlowJo software. Data shown on this Technical Data Sheet are not lot specific. Flow cytometric analysis of CD137 expression on stimulated human peripheral blood lymphocytes. Concanavalin A Con-A -stimulated 3 days peripheral blood mononuclear cells were stained with either BD Horizon BUV737 Mouse IgG1, kappa Isotype Control Cat. No. 612758; dashed line histogram or BD Horizon BUV737 Mouse Anti-Human CD137 antibody Cat. No. 568348; solid line histogram at 0. 5 mug/test . BD Via-Probe Cell Viability 7-AAD Solution Cat. No. 555815/555816 was added to cells right before analysis. The fluorescence histogram showing the expressed levels of CD137 or Ig Isotype control staining was derived from gated events with the forward and side light-scatter characteristics of viable 7-AAD-negative activated lymphocytes. Flow cytometry and data analysis were performed using a BD LSRFortessa Cell Analyzer System and FlowJo software. Data shown on this Technical Data Sheet are not lot specific. Show More Flow cytometric analysis of CD137 expression on stimulated human peripheral blood lymphocytes. Concanavalin A Con-A -stimulated 3 days peripheral blood mononuclear cells were stained with either BD Horizon BUV737 Mouse IgG1, kappa Isotype Control Cat. No. 612758; dashed line histogram or BD Horizon BUV737 Mouse Anti-Human CD137 antibody Cat. No. 568348; solid line histogram at 0. 5 mug/test . BD Via-Probe Cell Viability 7-AAD Solution Cat. No. 555815/555816 was added to cells right before analysis. The fluorescence histogram showing the expressed levels of CD137 or Ig Isotype control staining was derived from gated events with the forward and side light-scatter characteristics of viable 7-AAD-negative activated lymphocytes. Flow cytometry and data analysis were performed using a BD LSRFortessa Cell Analyzer System and FlowJo software. Data shown on this Technical Data Sheet are not lot specific.
