BD HorizonTM BV510 Rat Anti-Mouse Ly-6G

Description

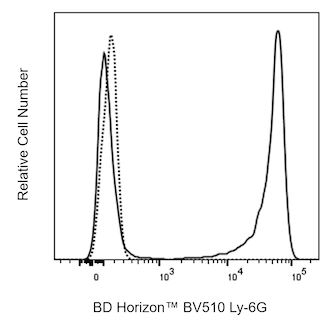

Flow cytometric analysis of Ly-6G expression on Mouse bone marrow cells. BALB/c Mouse bone marrow cells were preincubated with Purified Rat Anti-Mouse CD16/CD32 antibody Mouse BD Fc Block Cat. No. 553141/553142 . The cells were then stained with either BD Horizon BV510 Rat IgG2a, kappa Isotype Control Cat. No. 562952; dashed line histogram or BD Horizon BV510 Rat Anti-Mouse Ly-6G antibody Cat. No. 569685; solid line histogram at 1.0 mug/test. BD Via-Probe Cell Viability 7-AAD Solution Cat. No. 555815/555816 was added to cells right before analysis. The fluorescence histogram showing the expression of Ly-6G or Ig Isotype control staining was derived from gated events with the forward and side-light scatter characteristics of viable 7-AAD-negative bone marrow cells. Flow cytometry and data analysis were performed using a BD LSRFortessa X-20 Cell Analyzer System and FlowJo Software. Data shown on this Technical Data Sheet are not lot specific. Multiparameter flow cytometric analysis of Ly-6G expression on Mouse bone marrow cells. BALB/c Mouse bone marrow cells were stained with either BD Horizon BV510 Rat IgG2a, kappa Isotype Control Cat. No. 562952; Left Plot or BD Horizon BV510 Rat Anti-Mouse Ly-6G antibody Cat. No. 569685; Right Plot at 1.0 mug/test. BD Via-Probe Cell Viability 7-AAD Solution Cat. No. 555815/555816 was added to cells right before analysis. The bivariate pseudocolor density plot showing the correlated expression of Ly-6G or Ig Isotype control staining versus side light-scatter SSC-A signals was derived from gated events with the forward and side light-scatter characteristics of viable 7-AAD-negative bone marrow leukocyte populations. Flow cytometry and data analysis were performed using a BD LSRFortessa X-20 Cell Analyzer System and FlowJo Software. Data shown on this Technical Data Sheet are not lot specific. Flow cytometric analysis of Ly-6G expression on Mouse bone marrow cells. BALB/c Mouse bone marrow cells were preincubated with Purified Rat Anti-Mouse CD16/CD32 antibody Mouse BD Fc Block Cat. No. 553141/553142 . The cells were then stained with either BD Horizon BV510 Rat IgG2a, kappa Isotype Control Cat. No. 562952; dashed line histogram or BD Horizon BV510 Rat Anti-Mouse Ly-6G antibody Cat. No. 569685; solid line histogram at 1.0 mug/test. BD Via-Probe Cell Viability 7-AAD Solution Cat. No. 555815/555816 was added to cells right before analysis. The fluorescence histogram showing the expression of Ly-6G or Ig Isotype control staining was derived from gated events with the forward and side-light scatter characteristics of viable 7-AAD-negative bone marrow cells. Flow cytometry and data analysis were performed using a BD LSRFortessa X-20 Cell Analyzer System and FlowJo Software. Data shown on this Technical Data Sheet are not lot specific. Show More Multiparameter flow cytometric analysis of Ly-6G expression on Mouse bone marrow cells. BALB/c Mouse bone marrow cells were stained with either BD Horizon BV510 Rat IgG2a, kappa Isotype Control Cat. No. 562952; Left Plot or BD Horizon BV510 Rat Anti-Mouse Ly-6G antibody Cat. No. 569685; Right Plot at 1.0 mug/test. BD Via-Probe Cell Viability 7-AAD Solution Cat. No. 555815/555816 was added to cells right before analysis. The bivariate pseudocolor density plot showing the correlated expression of Ly-6G or Ig Isotype control staining versus side light-scatter SSC-A signals was derived from gated events with the forward and side light-scatter characteristics of viable 7-AAD-negative bone marrow leukocyte populations. Flow cytometry and data analysis were performed using a BD LSRFortessa X-20 Cell Analyzer System and FlowJo Software. Data shown on this Technical Data Sheet are not lot specific. Show More Flow cytometric analysis of Ly-6G expression on Mouse bone marrow cells. BALB/c Mouse bone marrow cells were preincubated with Purified Rat Anti-Mouse CD16/CD32 antibody Mouse BD Fc Block Cat. No. 553141/553142 . The cells were then stained with either BD Horizon BV510 Rat IgG2a, kappa Isotype Control Cat. No. 562952; dashed line histogram or BD Horizon BV510 Rat Anti-Mouse Ly-6G antibody Cat. No. 569685; solid line histogram at 1.0 mug/test. BD Via-Probe Cell Viability 7-AAD Solution Cat. No. 555815/555816 was added to cells right before analysis. The fluorescence histogram showing the expression of Ly-6G or Ig Isotype control staining was derived from gated events with the forward and side-light scatter characteristics of viable 7-AAD-negative bone marrow cells. Flow cytometry and data analysis were performed using a BD LSRFortessa X-20 Cell Analyzer System and FlowJo Software. Data shown on this Technical Data Sheet are not lot specific. Multiparameter flow cytometric analysis of Ly-6G expression on Mouse bone marrow cells. BALB/c Mouse bone marrow cells were stained with either BD Horizon BV510 Rat IgG2a, kappa Isotype Control Cat. No. 562952; Left Plot or BD Horizon BV510 Rat Anti-Mouse Ly-6G antibody Cat. No. 569685; Right Plot at 1.0 mug/test. BD Via-Probe Cell Viability 7-AAD Solution Cat. No. 555815/555816 was added to cells right before analysis. The bivariate pseudocolor density plot showing the correlated expression of Ly-6G or Ig Isotype control staining versus side light-scatter SSC-A signals was derived from gated events with the forward and side light-scatter characteristics of viable 7-AAD-negative bone marrow leukocyte populations. Flow cytometry and data analysis were performed using a BD LSRFortessa X-20 Cell Analyzer System and FlowJo Software. Data shown on this Technical Data Sheet are not lot specific.
