BD PhosflowTM PE Mouse anti-SLP-76 (pY128)

Description

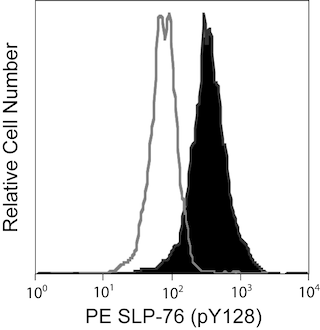

Analysis of SLP-76 pY128 in human peripheral blood lymphocytes. Human peripheral blood mononuclear cells were either stimulated by cross-linking of CD3 and CD28 with NA/LE Mouse anti-Human CD3 Cat. No. 555329 and NA/LE Mouse anti-Human CD28 Cat. No. 555725 on ice for 15 minutes, followed by Purified Goat anti-Mouse Ig Cat. No. 553998 on ice for 15 minutes, then allowed to undergo phosphorylation at 37C for 5 minutes shaded histograms or unstimulated open histograms . The cells were fixed BD Cytofix buffer, Cat. No. 554655 for 10 minutes at 37C, permeabilized BD Phosflow Perm Buffer III, Cat. No. 558050 on ice for 30 minutes, blocked with normal mouse immunoglobulin, and then stained with PE Mouse anti-SLP-76 pY128, Cat. No. 558437 and PerCP-Cy5.5 Mouse anti-human CD3 Cat. No. 340949 . The left panel displays the upregulated phosphorylation of SLP-76 in activated CD3-positive T lymphocytes, while the right panel displays the lack of upregulated SLP-76 phosphorylation in CD3-negative non-T cells. Flow cytometry was performed on a BD FACSCalibur flow cytometry system. Analysis of SLP-76 pY128 in human peripheral blood lymphocytes. Human peripheral blood mononuclear cells were either stimulated by cross-linking of CD3 and CD28 with NA/LE Mouse anti-Human CD3 Cat. No. 555329 and NA/LE Mouse anti-Human CD28 Cat. No. 555725 on ice for 15 minutes, followed by Purified Goat anti-Mouse Ig Cat. No. 553998 on ice for 15 minutes, then allowed to undergo phosphorylation at 37C for 5 minutes shaded histograms or unstimulated open histograms . The cells were fixed BD Cytofix buffer, Cat. No. 554655 for 10 minutes at 37C, permeabilized BD Phosflow Perm Buffer III, Cat. No. 558050 on ice for 30 minutes, blocked with normal mouse immunoglobulin, and then stained with PE Mouse anti-SLP-76 pY128, Cat. No. 558437 and PerCP-Cy5.5 Mouse anti-human CD3 Cat. No. 340949 . The left panel displays the upregulated phosphorylation of SLP-76 in activated CD3-positive T lymphocytes, while the right panel displays the lack of upregulated SLP-76 phosphorylation in CD3-negative non-T cells. Flow cytometry was performed on a BD FACSCalibur flow cytometry system. Analysis of SLP-76 pY128 in human peripheral blood lymphocytes. Human peripheral blood mononuclear cells were either stimulated by cross-linking of CD3 and CD28 with NA/LE Mouse anti-Human CD3 Cat. No. 555329 and NA/LE Mouse anti-Human CD28 Cat. No. 555725 on ice for 15 minutes, followed by Purified Goat anti-Mouse Ig Cat. No. 553998 on ice for 15 minutes, then allowed to undergo phosphorylation at 37C for 5 minutes shaded histograms or unstimulated open histograms . The cells were fixed BD Cytofix buffer, Cat. No. 554655 for 10 minutes at 37C, permeabilized BD Phosflow Perm Buffer III, Cat. No. 558050 on ice for 30 minutes, blocked with normal mouse immunoglobulin, and then stained with PE Mouse anti-SLP-76 pY128, Cat. No. 558437 and PerCP-Cy5.5 Mouse anti-human CD3 Cat. No. 340949 . The left panel displays the upregulated phosphorylation of SLP-76 in activated CD3-positive T lymphocytes, while the right panel displays the lack of upregulated SLP-76 phosphorylation in CD3-negative non-T cells. Flow cytometry was performed on a BD FACSCalibur flow cytometry system. Show More Analysis of SLP-76 pY128 in human peripheral blood lymphocytes. Human peripheral blood mononuclear cells were either stimulated by cross-linking of CD3 and CD28 with NA/LE Mouse anti-Human CD3 Cat. No. 555329 and NA/LE Mouse anti-Human CD28 Cat. No. 555725 on ice for 15 minutes, followed by Purified Goat anti-Mouse Ig Cat. No. 553998 on ice for 15 minutes, then allowed to undergo phosphorylation at 37C for 5 minutes shaded histograms or unstimulated open histograms . The cells were fixed BD Cytofix buffer, Cat. No. 554655 for 10 minutes at 37C, permeabilized BD Phosflow Perm Buffer III, Cat. No. 558050 on ice for 30 minutes, blocked with normal mouse immunoglobulin, and then stained with PE Mouse anti-SLP-76 pY128, Cat. No. 558437 and PerCP-Cy5.5 Mouse anti-human CD3 Cat. No. 340949 . The left panel displays the upregulated phosphorylation of SLP-76 in activated CD3-positive T lymphocytes, while the right panel displays the lack of upregulated SLP-76 phosphorylation in CD3-negative non-T cells. Flow cytometry was performed on a BD FACSCalibur flow cytometry system. Show More Analysis of SLP-76 pY128 in human peripheral blood lymphocytes. Human peripheral blood mononuclear cells were either stimulated by cross-linking of CD3 and CD28 with NA/LE Mouse anti-Human CD3 Cat. No. 555329 and NA/LE Mouse anti-Human CD28 Cat. No. 555725 on ice for 15 minutes, followed by Purified Goat anti-Mouse Ig Cat. No. 553998 on ice for 15 minutes, then allowed to undergo phosphorylation at 37C for 5 minutes shaded histograms or unstimulated open histograms . The cells were fixed BD Cytofix buffer, Cat. No. 554655 for 10 minutes at 37C, permeabilized BD Phosflow Perm Buffer III, Cat. No. 558050 on ice for 30 minutes, blocked with normal mouse immunoglobulin, and then stained with PE Mouse anti-SLP-76 pY128, Cat. No. 558437 and PerCP-Cy5.5 Mouse anti-human CD3 Cat. No. 340949 . The left panel displays the upregulated phosphorylation of SLP-76 in activated CD3-positive T lymphocytes, while the right panel displays the lack of upregulated SLP-76 phosphorylation in CD3-negative non-T cells. Flow cytometry was performed on a BD FACSCalibur flow cytometry system. Analysis of SLP-76 pY128 in human peripheral blood lymphocytes. Human peripheral blood mononuclear cells were either stimulated by cross-linking of CD3 and CD28 with NA/LE Mouse anti-Human CD3 Cat. No. 555329 and NA/LE Mouse anti-Human CD28 Cat. No. 555725 on ice for 15 minutes, followed by Purified Goat anti-Mouse Ig Cat. No. 553998 on ice for 15 minutes, then allowed to undergo phosphorylation at 37C for 5 minutes shaded histograms or unstimulated open histograms . The cells were fixed BD Cytofix buffer, Cat. No. 554655 for 10 minutes at 37C, permeabilized BD Phosflow Perm Buffer III, Cat. No. 558050 on ice for 30 minutes, blocked with normal mouse immunoglobulin, and then stained with PE Mouse anti-SLP-76 pY128, Cat. No. 558437 and PerCP-Cy5.5 Mouse anti-human CD3 Cat. No. 340949 . The left panel displays the upregulated phosphorylation of SLP-76 in activated CD3-positive T lymphocytes, while the right panel displays the lack of upregulated SLP-76 phosphorylation in CD3-negative non-T cells. Flow cytometry was performed on a BD FACSCalibur flow cytometry system.
